Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.

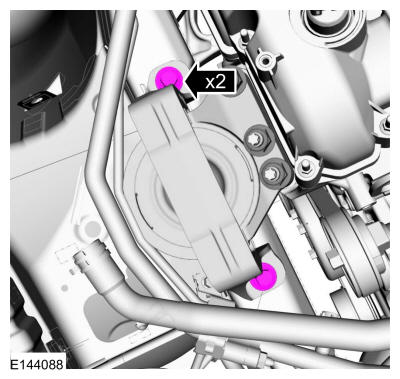

Tighten the engine mount studs.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the engine mount and the new nuts.
  Torque

  : 85 lb.ft (115 Nm)
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the new engine mount bolts finger tight.
Courtesy of FORD MOTOR COMPANY
Remove the trolley jack and wooden block.
Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Tighten the new engine mount bolts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the degas bottle.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the fasteners.

GFD570319

Courtesy of FORD MOTOR COMPANY
