Cylinder Head: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

Clean the cylinder head-to-cylinder block mating surface of both the cylinder head and the cylinder block.

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
Check the cylinder block distortion. Refer to: Cylinder Block Distortion .
Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.
Apply a bead of sealant as needed.
Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

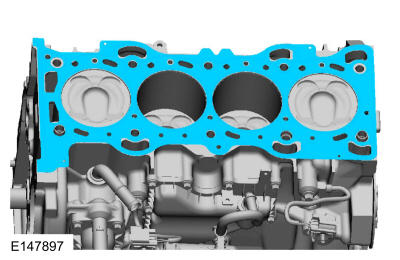

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

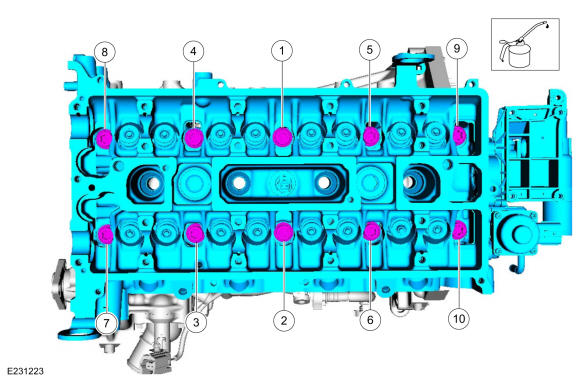

Install the bolts. Tighten in sequence shown in illustration in 5 stages.

Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Torque

:Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 33 lb.ft (45 Nm)

Stage 4: 90°

Stage 5: 90°

Fig 1: Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

Install the new exhaust manifold studs.

Torque

: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

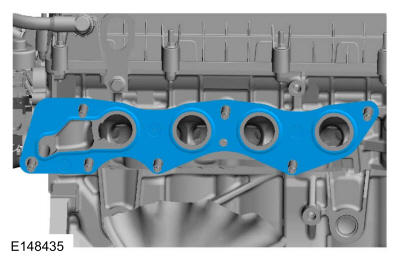

Install a new exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

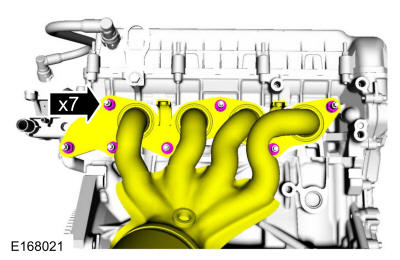

Position back the exhaust manifold and install the nuts.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
1. Using a new gasket, position back the exhaust system.
2. NOTE: Make sure that new components are installed.

  Install the new nuts.

  Torque

  : 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

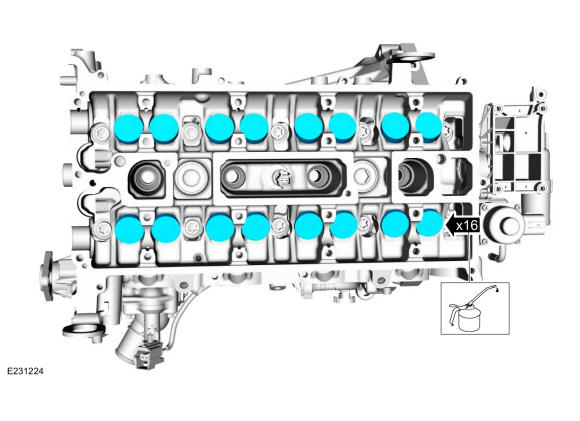

Apply clean engine oil and install the valve tappets.
Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
