Removal And Installation: Camshafts: Installation
-
NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance, follow the next 10 steps exactly or serious damage to the engine may occur. If the original parts are being installed it is not necessary to check the valve clearance so proceed to step 11.

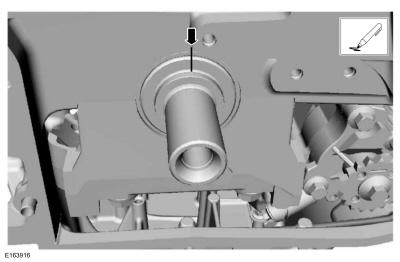

Place a paint mark on the crankshaft at the 12 o'clock position.
- Remove the special tool.
Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
-
NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

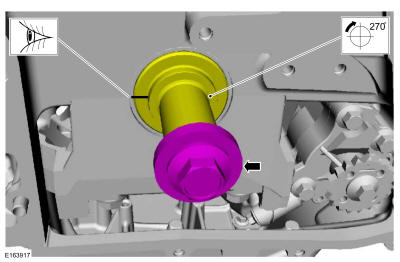

Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270° until the paint mark is at the 9 o'clock position.
-
NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.

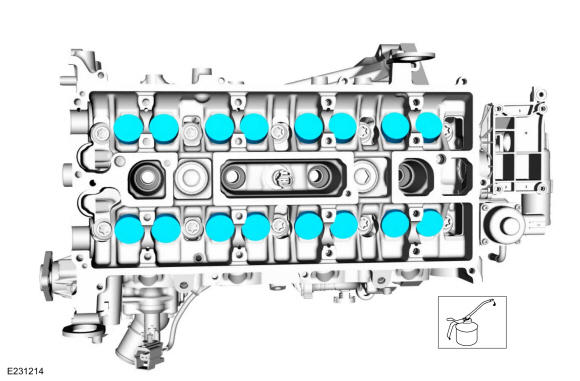

Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.
Torque
:Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
-
- Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.

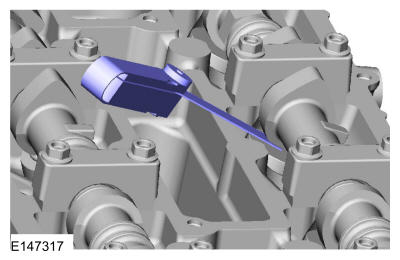

- Using a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
- Repeat to measure all of the lobe/tappet clearances.
-
NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 MM.NOTE: Select tappets using this formula: ideal tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.NOTE: The nominal clearance is:
- intake: 0.25 mm (0.0098 in)
- exhaust: 0.30 mm (0.0118 in)
NOTE: The acceptable clearances after being fully installed are:- intake: 0.23-0.28 mm (0.009-0.011 in)
- exhaust: 0.27-0.33 mm (0.010-0.013 in)
-
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
Loosen the camshaft bearing cap bolts, in sequence, one turn at a time until all tension is released from the camshaft bearing caps.
- Install the special tool. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
-
NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

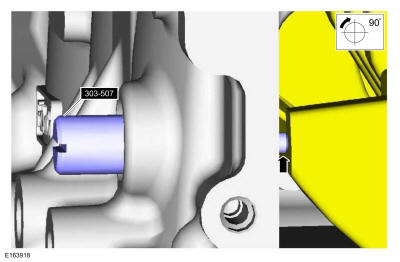

Rotate the crankshaft clockwise 90° so the crankshaft contacts the Timing Peg, Crankshaft TDC 303-507.
- If necessary, replace any tappets with the correct tappets selected during the valve clearance check.
- NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180° out of position can cause severe damage to the valves and pistons.
Lubricate the camshafts with clean engine oil and install the camshafts.
Material
: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
-
NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.
Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.
Material
: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque
:Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
- Install the special tool.
Install Special Service Tool: 303-465 Tool, Camshaft Align Timing.
- Install the VCT oil control solenoid and bolt.
- Install the VCT unit. 3to: Variable Camshaft Timing (VCT) Unit .
