Engine Accessories

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A TKIT-2009TC-F
Lifting Bracket
Mounting Stand
Hose Clamp Remover/Installer

Materials

Name	Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil XO-5W20-Q1SP	WSS-M2C945-B1
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

If equipped, install the block heater.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

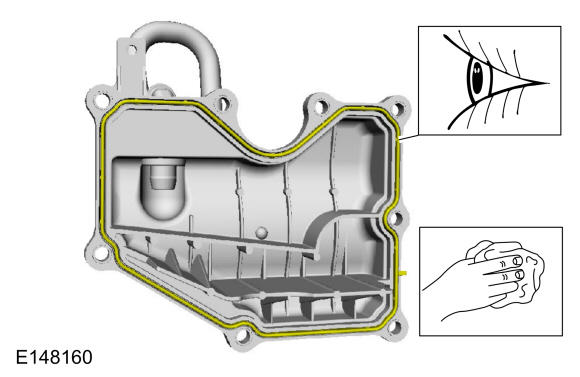

Inspect the crankcase vent oil separator gasket and replace if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

Install the crankcase vent oil separator and the bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

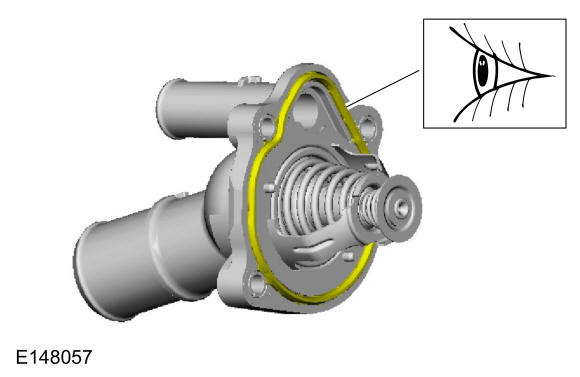

Inspect the thermostat housing gasket and replace if necessary.

Courtesy of FORD MOTOR COMPANY
Install the thermostat housing and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

Install the knock sensor and the bolt.

Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

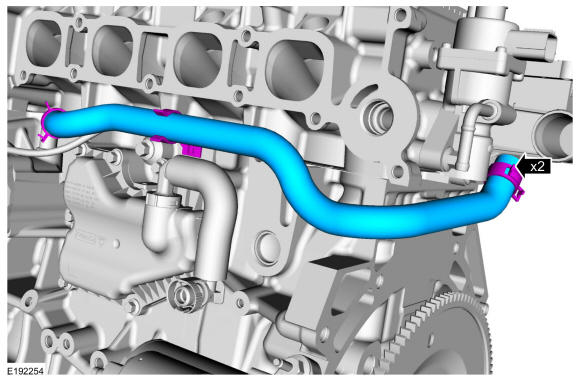

Install the water by pass hose and connect the clamps.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the EGR tube.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

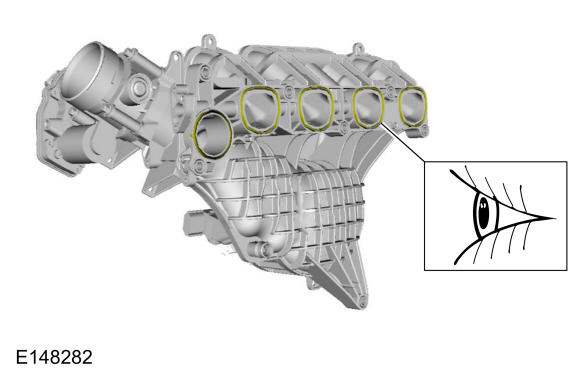

Inspect the intake manifold gaskets and replace if necessary.

Courtesy of FORD MOTOR COMPANY
Position the intake manifold and connect the crankcase vent oil separator tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Install all the bolts finger tight before final tightening.

Position back the intake manifold and install the bolts. Tighten the bolts in the sequence shown in illustration.

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

Install the fuel injector retaining clips and the fuel injector O-ring seals. Lubricate the fuel injector O-ring seals.

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY

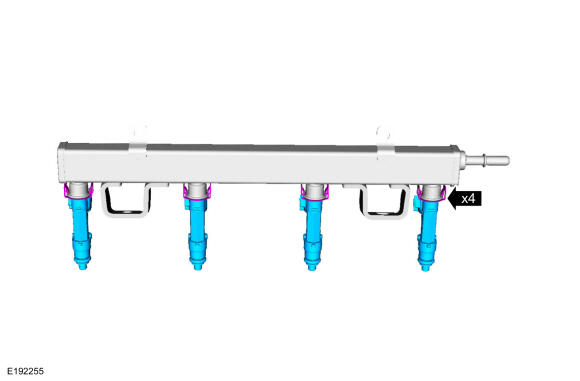

Install the fuel injectors into the fuel rail.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use moderate force.

Install the fuel rail and the bolts.

Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Install the radio capacitor and the nut.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the fuel rail insulator.

Courtesy of FORD MOTOR COMPANY
Install the engine wire harness and connect the harness retainer.

Courtesy of FORD MOTOR COMPANY
Connect the EGR valve electrical connector.

Courtesy of FORD MOTOR COMPANY
Position the bracket and install the nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the electrical connector and wire retainers.

Courtesy of FORD MOTOR COMPANY
Connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the wire harness retainer to the intake manifold.

Courtesy of FORD MOTOR COMPANY
Connect the fuel injector electrical connectors and the wiring harness retainers to the fuel rail.

Courtesy of FORD MOTOR COMPANY
Position the electrical connector and connect the retainer.

Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

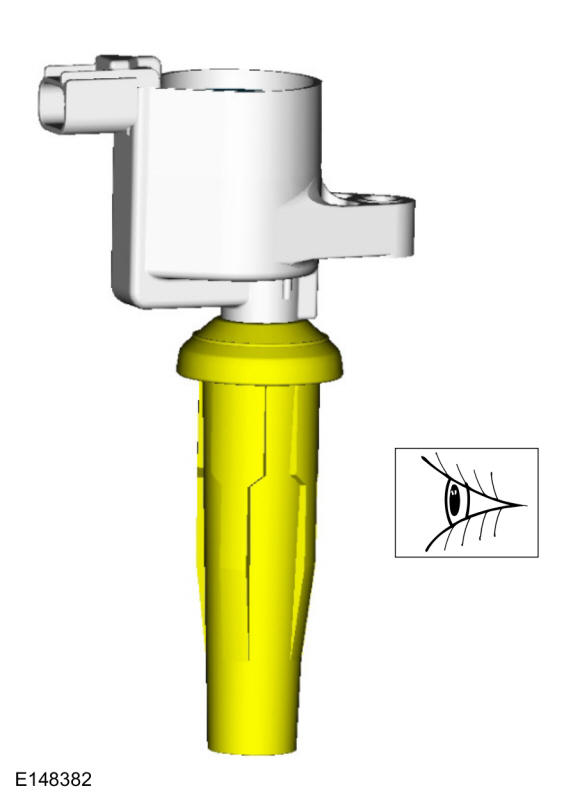

Inspect the ignition coil boots.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply dielectric compound to the inside of the coil-on-plug boots.

Install the ignition coil-on-plugs and the bolts.

Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the CHT sensor electrical connector and position the boot on the CHT sensor.

Courtesy of FORD MOTOR COMPANY
Connect the CMP sensor electrical connector and the ignition coil-on-plugs electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the VCT oil control solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the electrical connector and wire retainers to the intake manifold.

Courtesy of FORD MOTOR COMPANY
Connect the wire retainers.

Courtesy of FORD MOTOR COMPANY
Connect the crankshaft position sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the crankcase vent tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

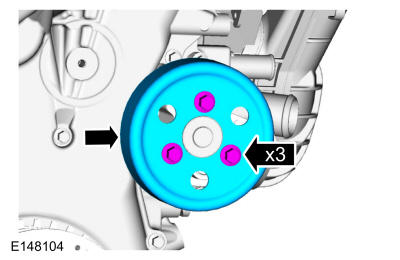

Install the coolant pump pulley and the bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the idler pulley and the bolt.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the floor crane.
Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

Install the General Equipment: Lifting Bracket

Courtesy of FORD MOTOR COMPANY

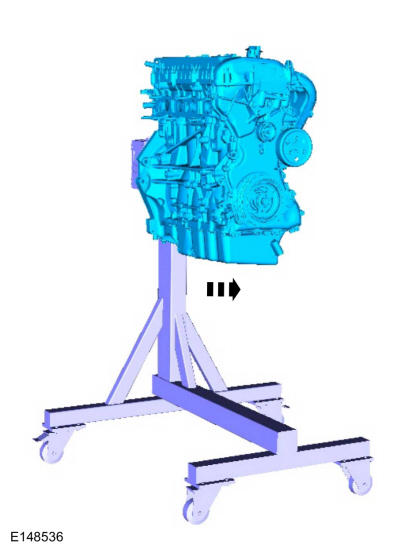

Remove the engine mounting stand.
Remove the General Equipment: Mounting Stand

Courtesy of FORD MOTOR COMPANY

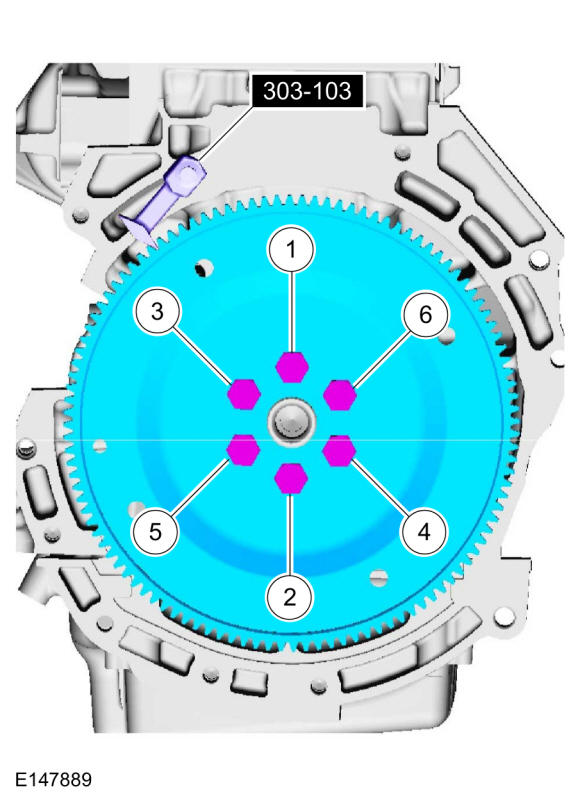

- Using the special tool, install the flexplate and the new bolts.
  Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Tighten the bolts in the sequence shown in illustration. Remove the special tool.
  Torque:

  Stage 1: 37 lb.ft (50 Nm)

  Stage 2: 59 lb.ft (80 Nm)

  Stage 3: 83 lb.ft (112 Nm)

Courtesy of FORD MOTOR COMPANY
