Transmission Internal Wiring Harness Frame: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the main control cover. Main Control Cover .

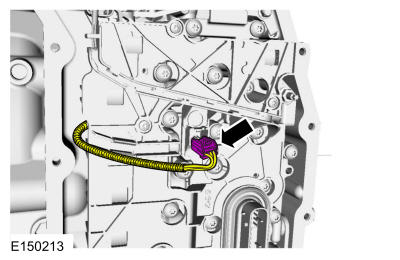

Disconnect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

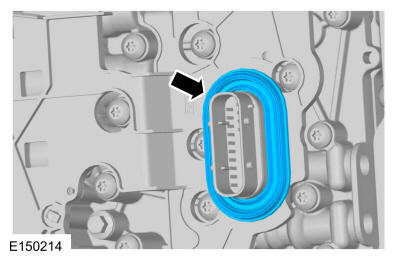

Remove the main control-to-cover seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component terminals.

Remove the screws and carefully remove the transmission internal wiring harness frame from the solenoids by lifting it straight upevenly.
