Solenoid Body: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the main control valve body. Refer to: Main Control Valve Body .
- Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.

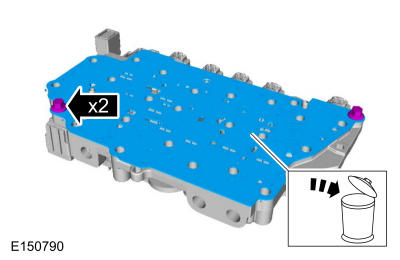

- Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
