Output Shaft Speed (OSS) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the main control valve body. Refer to: Main Control Valve Body .

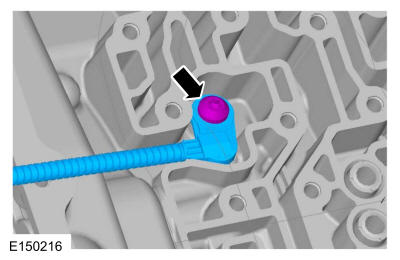

- Remove the bolt and remove the OSS sensor.
Torque: 89 lb.in (10 Nm)
