Main Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control cover. Refer to: Main Control Cover .

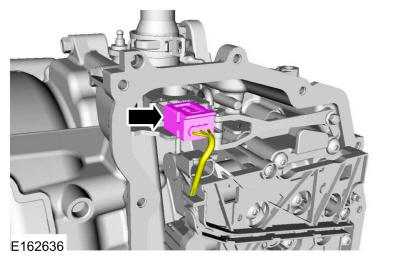

  2. Disconnect the TR sensor electrical connector.
    GFD571541Courtesy of FORD MOTOR COMPANY

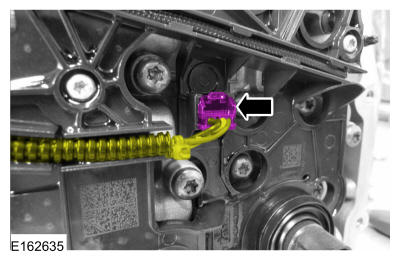

  3. Disconnect the OSS electrical connector.
    GFD571542Courtesy of FORD MOTOR COMPANY

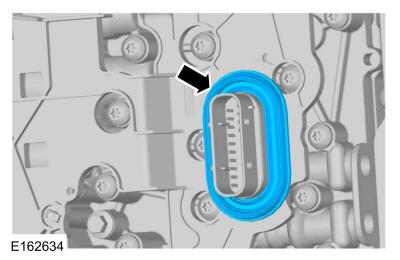

  4. Remove the rubber grommet.
    GFD571543Courtesy of FORD MOTOR COMPANY
  5. NOTE: Take extra care when handling the components.
    NOTE: Note the different lengths of the bolts.

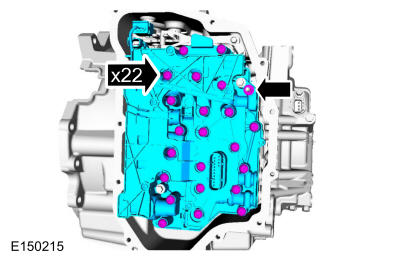

    Remove the nut, the bolts and the main control.

    GFD571544Courtesy of FORD MOTOR COMPANY

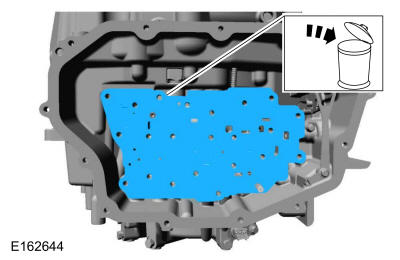

  6. Remove and discard the main control-to-transmission case separator plate.
    GFD571545Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and separate the solenoid body assembly from the main control valve body.
    GFD571546Courtesy of FORD MOTOR COMPANY

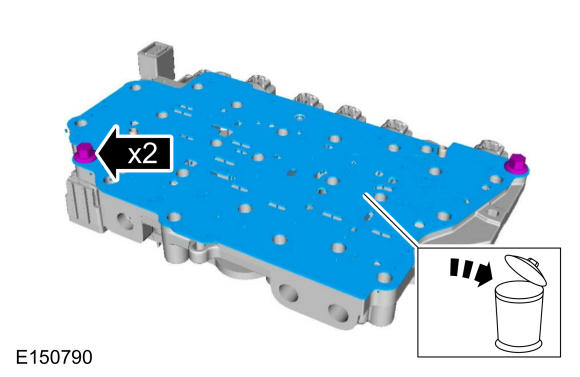

  8. Remove the 2 bolts and remove and discard the separator plate.
GFD571547Courtesy of FORD MOTOR COMPANY
