Main Control Cover: Installation
WARNING: This page is about a different variant/trim than selected.
-

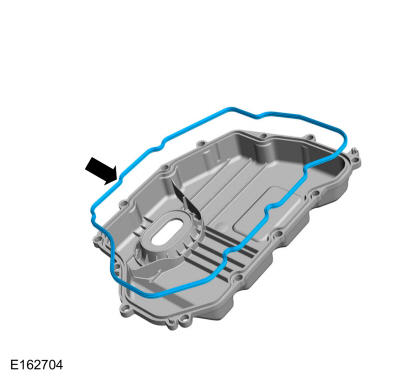

NOTE: The gasket is to be reused unless damaged.
Install a new transmission fluid pan gasket if required.

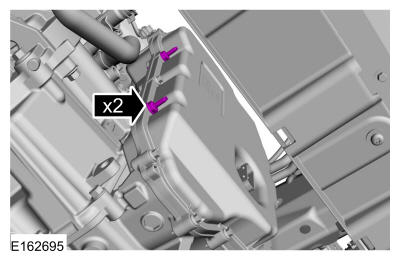

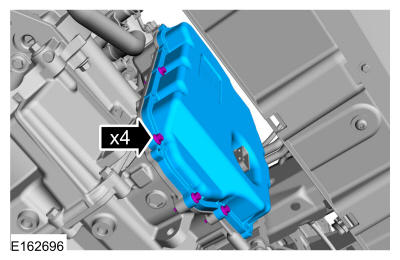

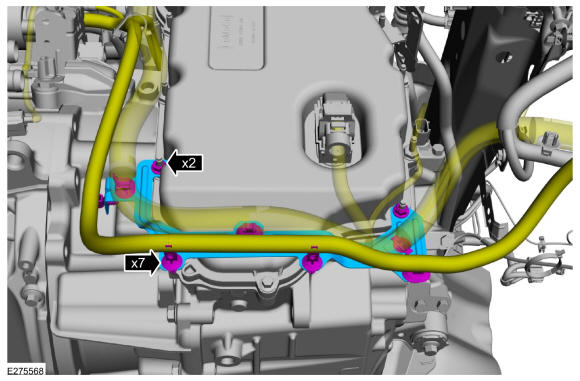

- Install the transmission main control cover and the bolts.
Torque: 106 lb.in (12 Nm)

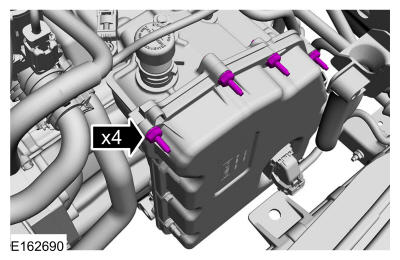

- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)

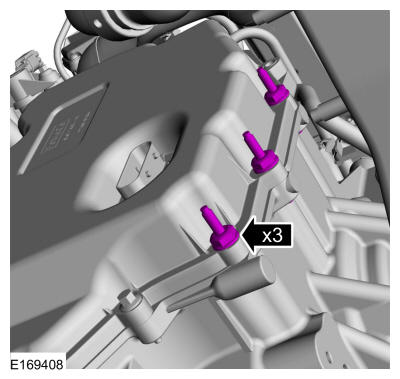

- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)
- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)

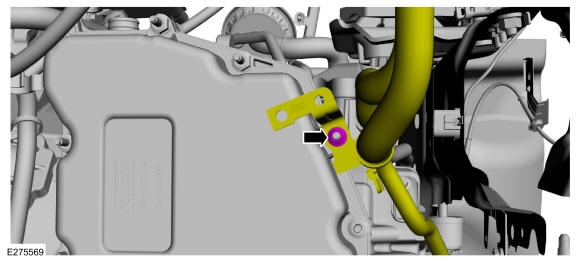

- Position back the coolant hose and install the transmission coolant hose bracket nut.

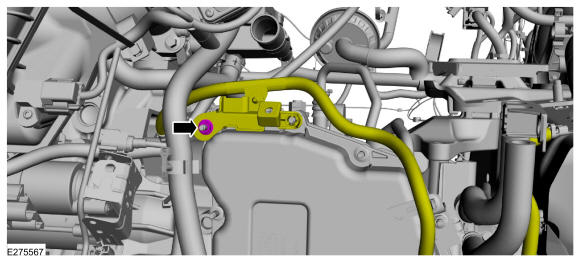

- Position back the wiring harness and install the wiring harness bracket nut.

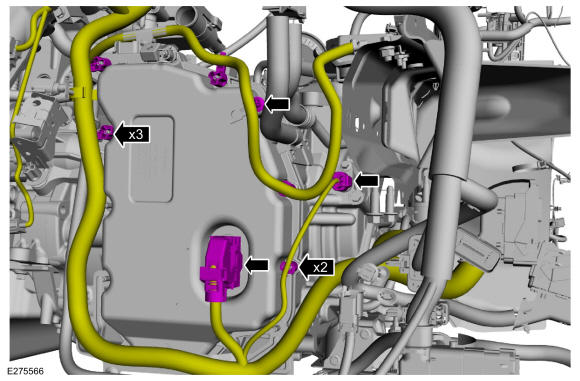

- Install the wiring harness bracket and nuts. Install the wiring harness retainers.
-
NOTE: Make sure that the component terminals are not bent or damaged.
Connect the transmission and TSS connectors and install the wiring harness retainers.
- Install the air cleaner. Refer to: Air Cleaner .
- Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
