Halfshaft Seal RH: Removal

WARNING: This page is about a different variant/trim than selected.

Refer to: Front Halfshaft RH .

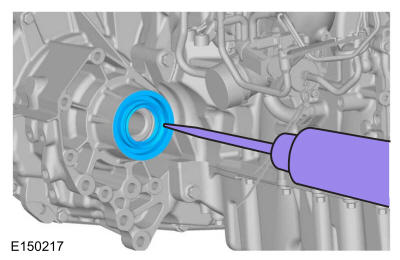

  1. Use the General Equipment: Punch
    GFD571528Courtesy of FORD MOTOR COMPANY

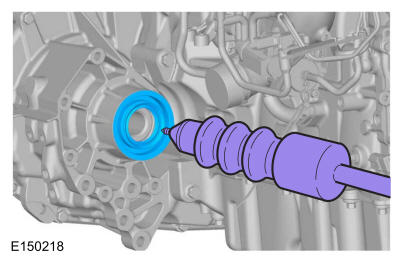

  2. Use the General Equipment: Puller
GFD571529Courtesy of FORD MOTOR COMPANY
