Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the LH halfshaft. Refer to: Front Halfshaft LH .

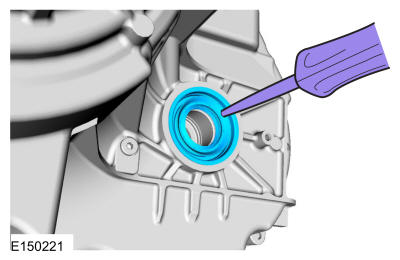

  2. Poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD571524Courtesy of FORD MOTOR COMPANY

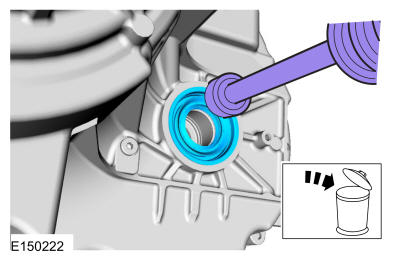

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD571525Courtesy of FORD MOTOR COMPANY
