Front Muffler: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

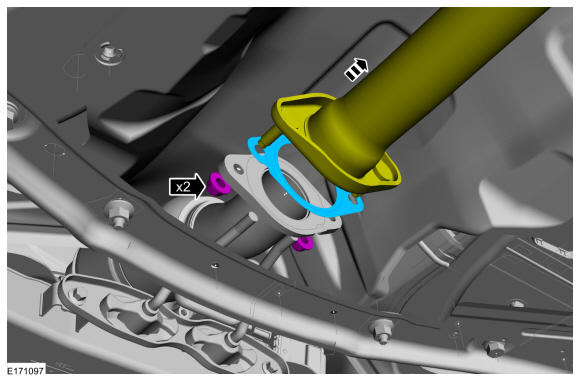

- Remove and discard the nuts.
- Position aside the muffler and tailpipe and discard the gasket.
- If equipped. Remove the bolts and the center support brace.
- Carefully cut the muffler and tailpipe, detach the exhaust hanger isolator and remove the front muffler pipe. Use the General Equipment: Air Body Saw
