Front Muffler: Installation
WARNING: This page is about a different variant/trim than selected.

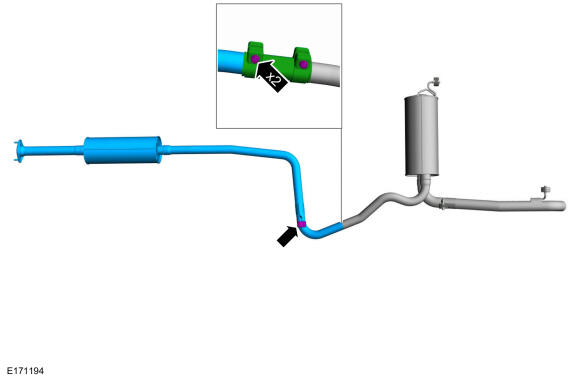

- Install the front muffler pipe and tighten the clamp.
Torque: 35 lb.ft (48 Nm)

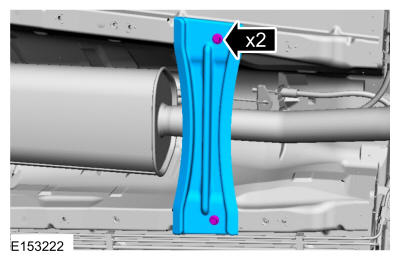

- If equipped. Install the center support brace and the bolts.
Torque: 18 lb.ft (25 Nm)
-
NOTE: Make sure that new components are installed.

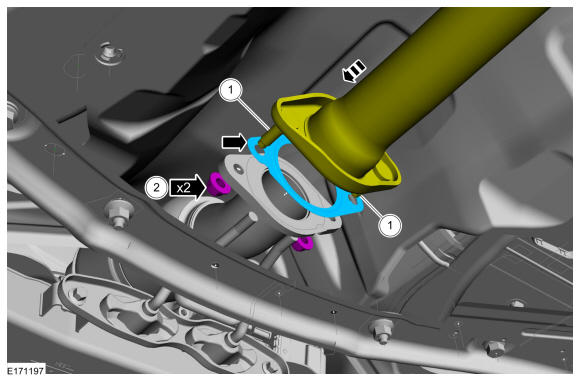

- Apply a thin coating. Install the gasket and position the muffler and tailpipe.
Material: Multi-Purpose Grease (SA-M1C9107-A)
- Install the nuts.
Torque: 35 lb.ft (48 Nm)
- Apply a thin coating. Install the gasket and position the muffler and tailpipe.
