Section 5 (Automatic Transmission - 6-Speed Automatic Transmission - 6F35 (1 Of 2))
>>
Description And Operation
>>
Transmission Description - System Operation and Component Description
>>
Component Description
>>

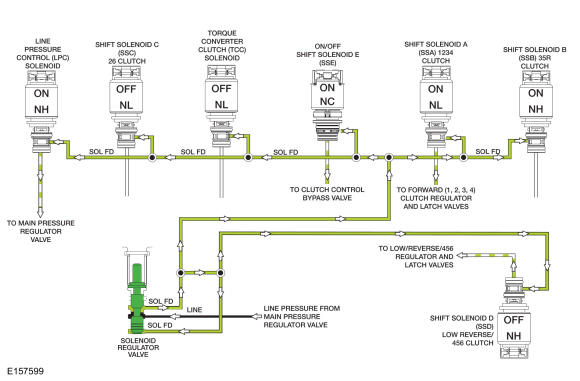

Manual Low Position and 1st Gear Below 8 km/h (5 mph) Solenoid Hydraulic Circuits
Manual Low Position and 1st Gear Below 8 km/h (5 mph) Solenoid Hydraulic Circuits
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
