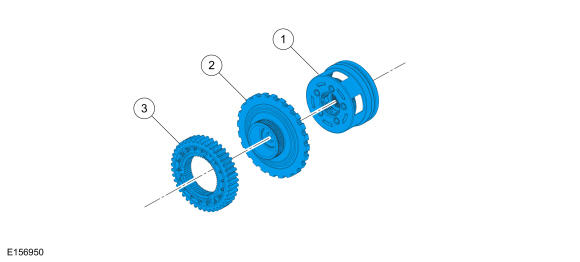

Front Planetary Carrier Hub Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Front planetary carrier |
| 2 | Front planetary carrier hub/park gear |
| 3 | Drive chain drive sprocket |

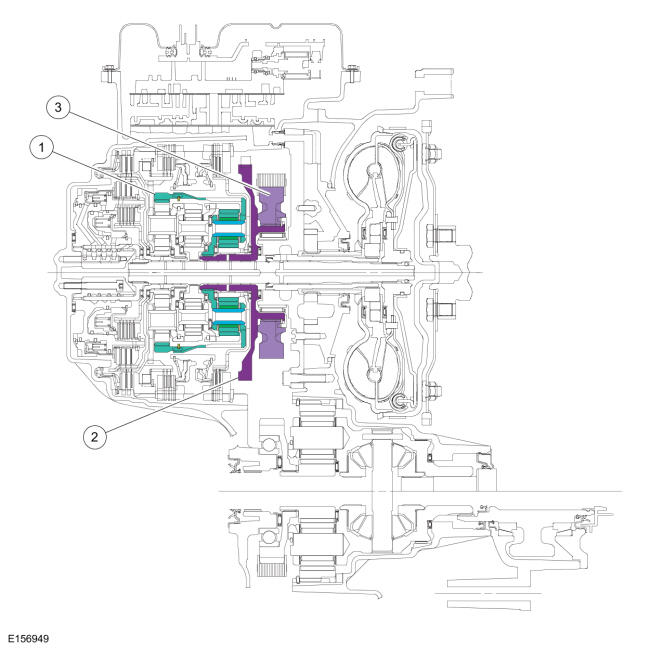

Front Planetary Carrier Hub Cutaway View
Front Planetary Carrier Hub (Output Hub)
The front planetary carrier hub/park gear is splined to the front planetary carrier and the drive chain drive sprocket. This allows torque to be transferred from the planetary gearset to the final drive gearset.
