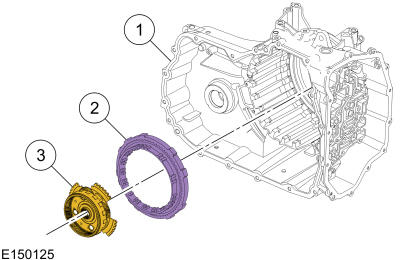

Low One-Way Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Low One-Way Clutch |
| 3 | Rear planetary carrier |

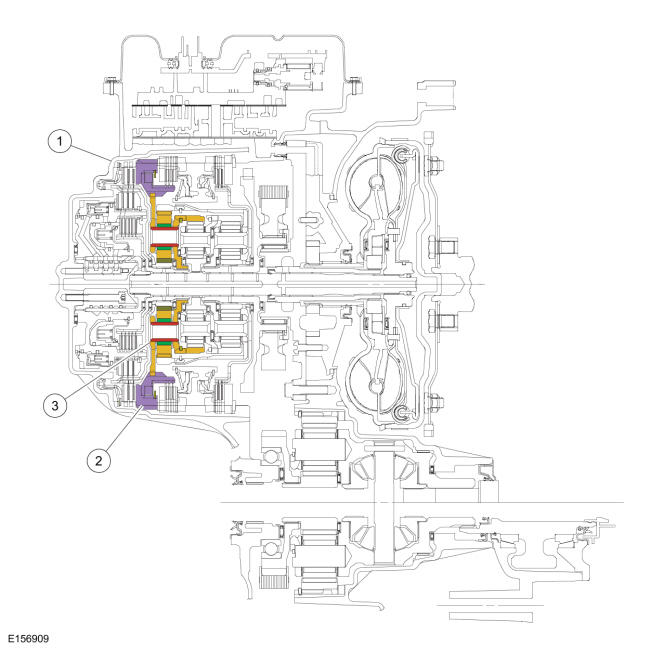

Low One-Way Clutch Cutaway View
Low One way Clutch
The low One-Way Clutch (OWC) is a brake clutch that holds the rear planetary carrier in one direction and allows it to freewheel in the opposite direction which eliminates engine braking in 1st gear when the transmission is in DRIVE. The low One-Way Clutch (OWC) is also the pressure plate for the intermediate (2, 6) clutch.
