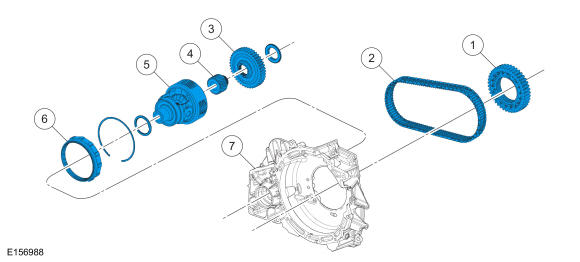

Final Drive Component Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Drive chain drive sprocket |
| 2 | Drive chain |
| 3 | Drive chain driven sprocket |
| 4 | Final drive planetary sun gear |
| 5 | Differential assembly |
| 6 | Final drive planetary ring gear |
| 7 | Torque converter housing |

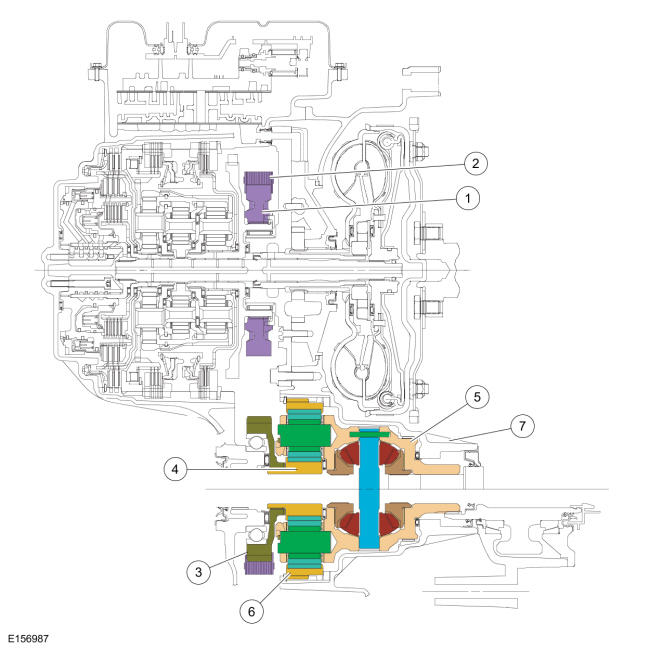

Final Drive Component Cutaway View
Final Drive Chain, Sprockets and Planetary Gearset
The final drive consists of a drive chain and sprockets and a planetary gearset and differential assembly. The drive chain and sprockets transfer torque from the front planetary carrier hub to the differential assembly that has a planetary gearset integrated into it for final drive torque multiplication.
The final drive consists of the following components:
- Drive sprocket
- Drive chain
- Driven sprocket
- Final drive sun gear
- Final drive ring gear
- Final drive planetary carrier and differential assembly
