Outer Constant Velocity (CV) Joint Boot: Installation

WARNING: This page is about a different variant/trim than selected.

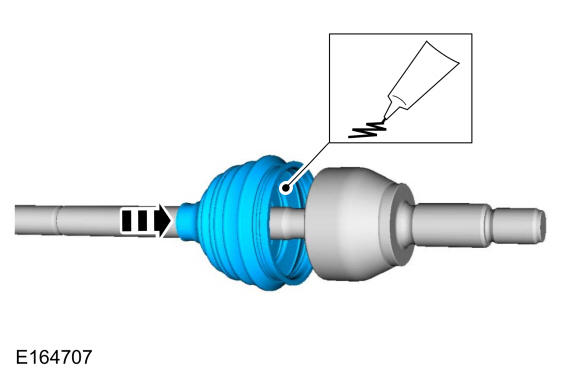

NOTE: Grease sachet is supplied with boot kit.

Install the CV joint boot and the grease sachet evenly in the CV joint boot and housing.

Material

: Motorcraft® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)

Courtesy of FORD MOTOR COMPANY

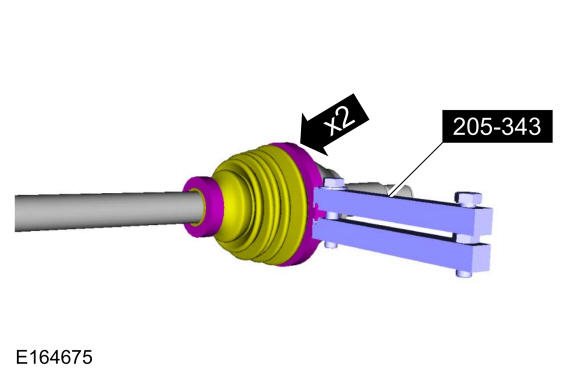

- Position the CV joint boot.
- Using boot clamp pliers, install the CV joint boot clamps. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.
Courtesy of FORD MOTOR COMPANY
Install the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .
