Inner Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front halfshaft. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .

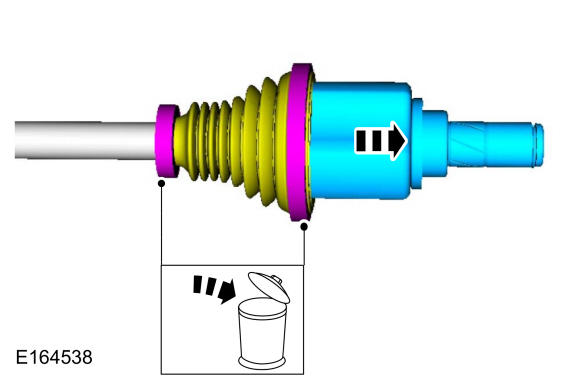

- Remove and discard the large and small CV boot clamps.
- Position the CV joint boot and the remove the inner CV joint housing.
Courtesy of FORD MOTOR COMPANY

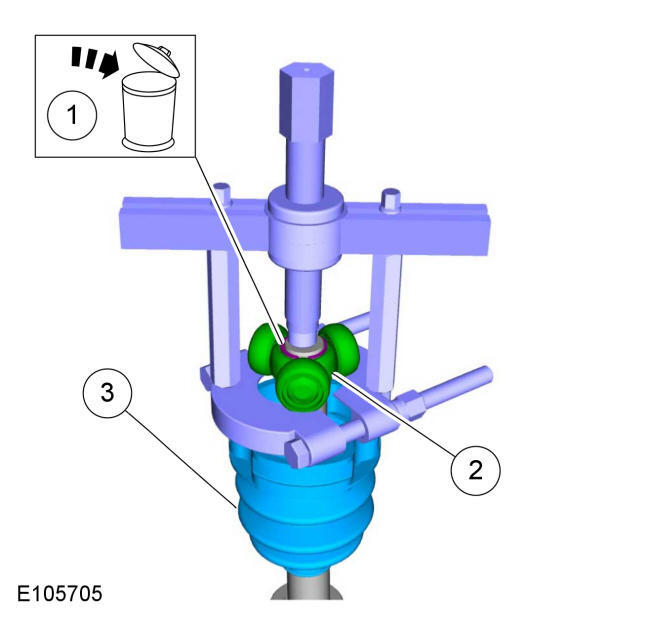

1. Remove and discard the CV joint tripod bearing circlip.
2. Using a suitable puller, remove the CV joint tripod bearing. Use the General Equipment: Bearing SeparatorUse the General Equipment: Puller
3. Remove the inner CV joint boot.

Courtesy of FORD MOTOR COMPANY
