Removal And Installation: Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

Completely cover the accessory drive belts with waterproof plastic.
NOTE: Be prepared to collect escaping fluid.
- Release the clamp and disconnect the lower radiator hose.
  Use the General Equipment: Hose Clamp Remover/Installer
- Release the clamp and disconnect the coolant hose.
  Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

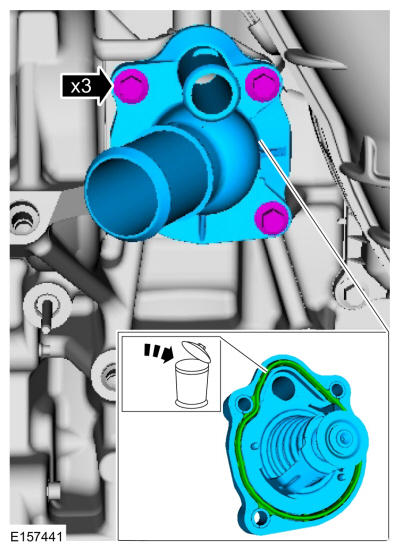

- Remove the bolts and the thermostat housing.
  Torque: 89 lb.in (10 Nm)
- Remove and discard the thermostat housing gasket.

Courtesy of FORD MOTOR COMPANY
