Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

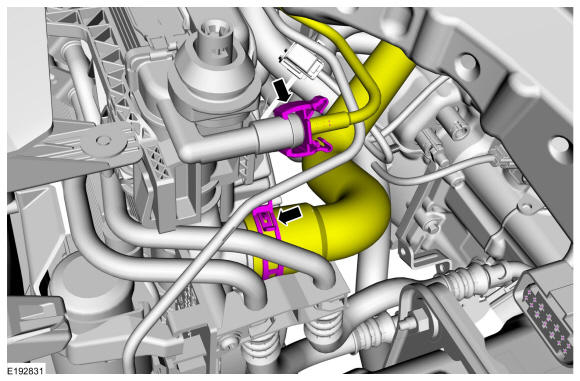

Detach the degas bottle hose and the upper coolant hose from the radiator.

Courtesy of FORD MOTOR COMPANY

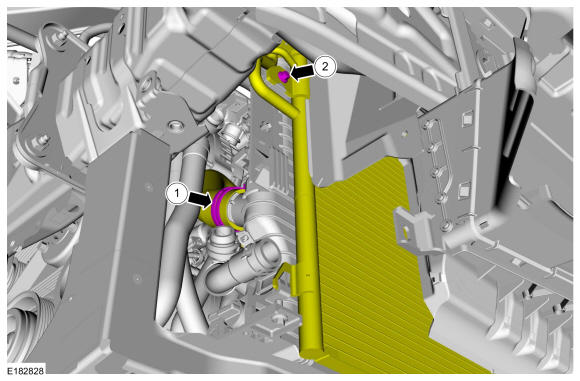

Remove the A/C condenser retaining bolt and detach the lower radiator coolant hose from the radiator.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no strain is placed on the refrigerant lines.

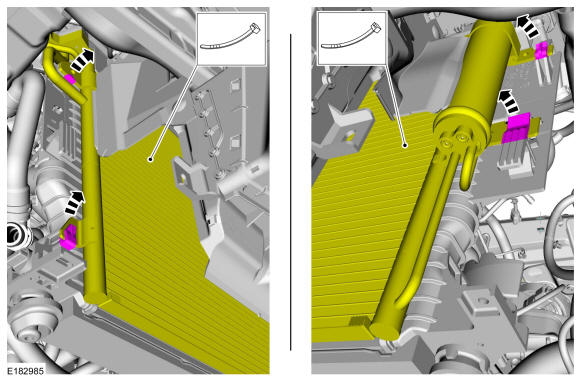

Loosely install the cable ties at both sides of the A/C condenser.

Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

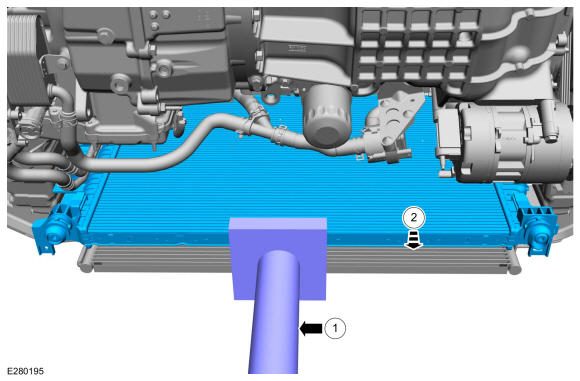

1. Remove the transmission jack.
  Remove the General Equipment: Transmission Jack
2. Remove the radiator.

Courtesy of FORD MOTOR COMPANY
