Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

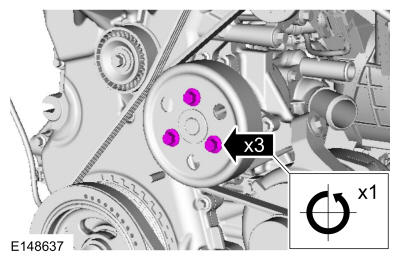

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt.
- Remove the bolts and the coolant pump pulley.
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.

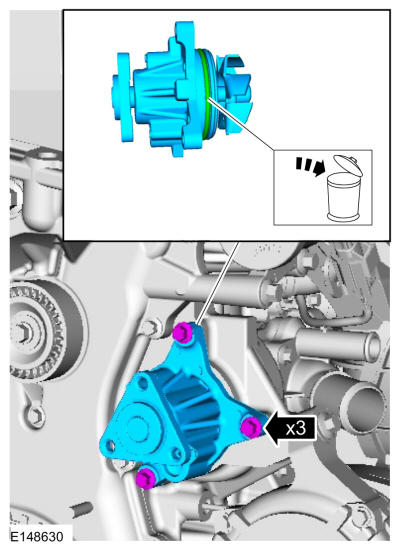

- Remove the bolts and the coolant pump.
