Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.

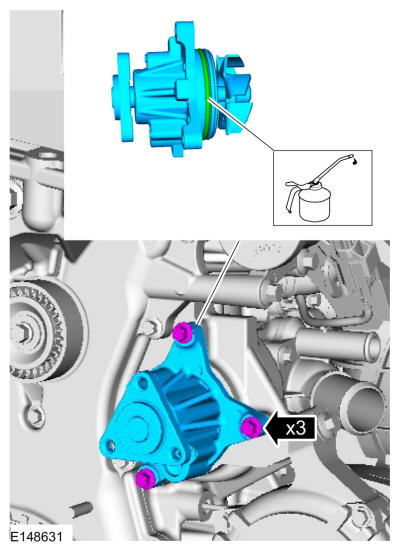

- Install a new coolant pump gasket and O-ring seal.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
Torque: 89 lb.in (10 Nm)
- Remove the plastic from the A/C compressor belt.

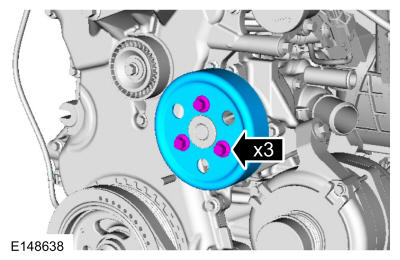

- Position the coolant pump pulley and install the bolts finger tight.
-

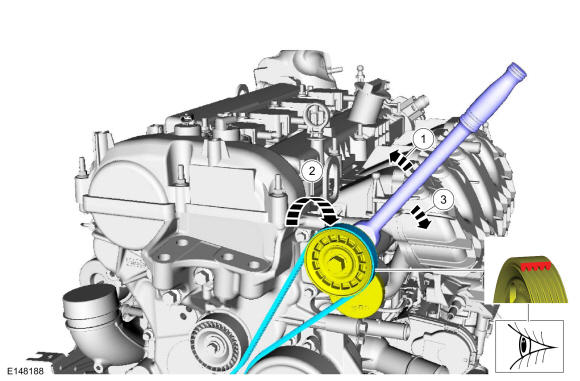

WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.
Install the accessory drive belt.

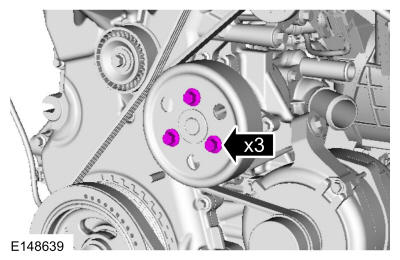

- Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)
- Fill the bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
