Radiator Upper Mounting Repair

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Flat File

Repair

Remove the radiator. Refer to: Radiator .

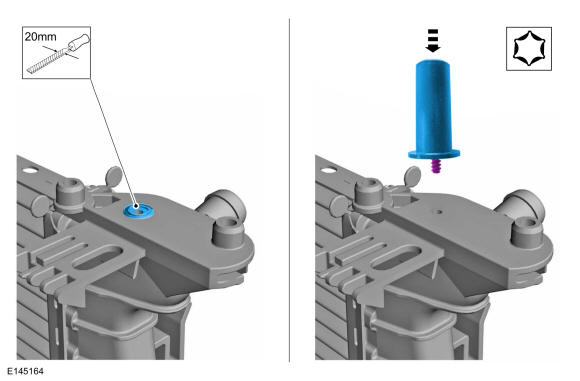

1. Using a flat file, thoroughly file the radiator upper mounting surface.
  Use the General Equipment: Flat File
2. Tighten the radiator upper mounting.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
Install the radiator. Refer to: Radiator .
