Radiator Lower Mounting Repair

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

5 mm Drill Bit
Flat File

Repair

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

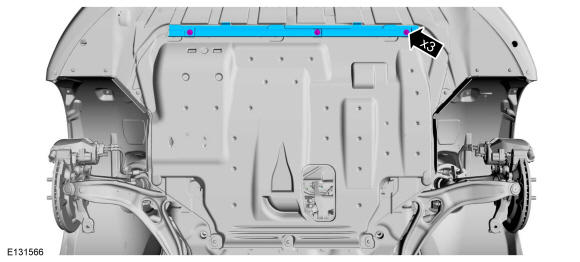

If equipped. Remove the retainers and the shield plate.

Courtesy of FORD MOTOR COMPANY

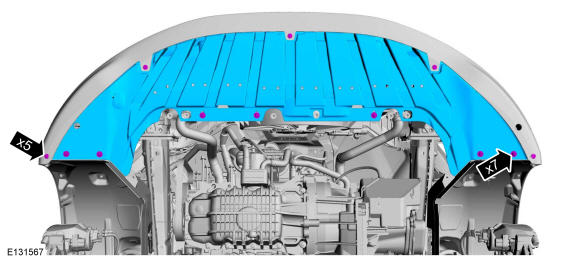

If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

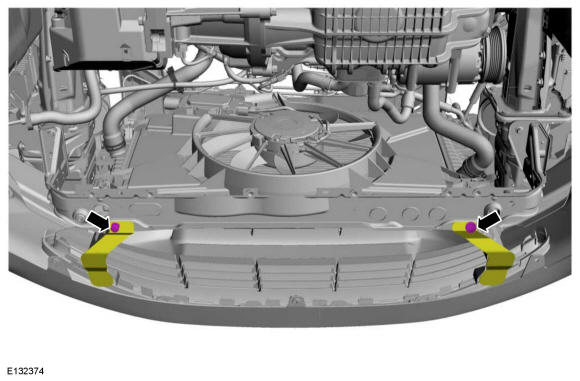

If equipped. Remove the retainers and the air deflectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no strain is placed on the refrigerant lines.

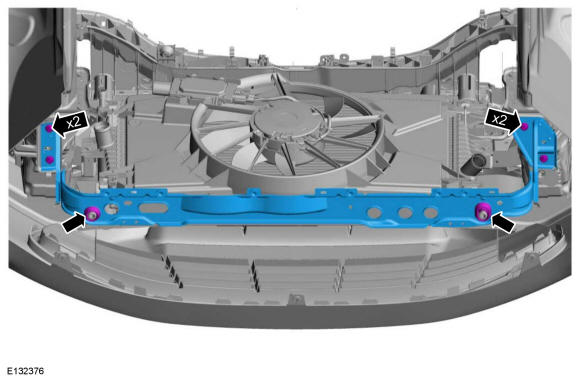

Remove the bolts and the lower radiator support.

Courtesy of FORD MOTOR COMPANY

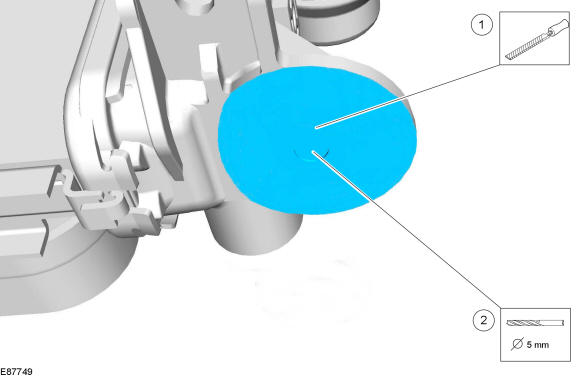

1. Using a flat file, file the surface as shown in illustration.
  Use the General Equipment: Flat File
2. Using a drill bit, drill hole in the radiator mount bracket.
  Use the General Equipment: 5 mm Drill Bit
Courtesy of FORD MOTOR COMPANY

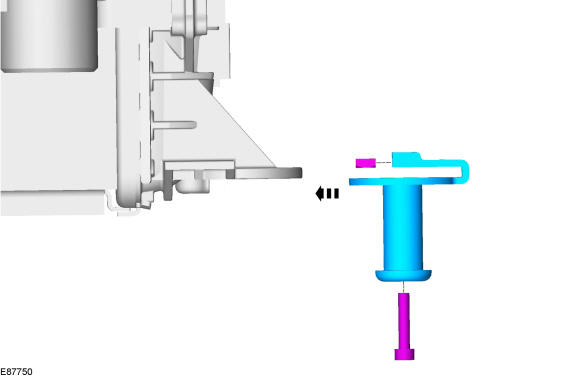

Install the radiator support bracket and the bolt.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no strain is placed on the refrigerant lines.

Install the lower radiator support and the bolts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Position the air deflectors and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped. Install the shield plate and the retainers.

Courtesy of FORD MOTOR COMPANY
