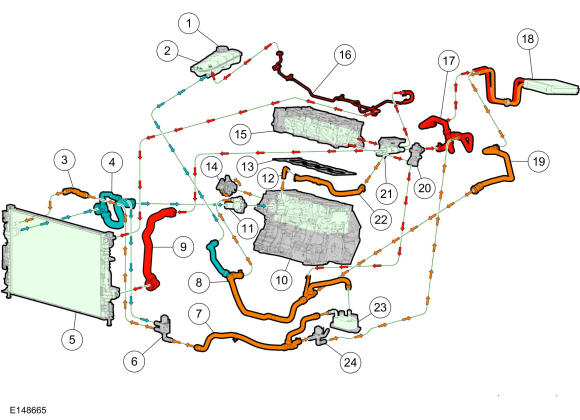

Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Transmission fluid cooler coolant control valve inlet hose |
| 4 | Upper radiator hose |
| 5 | Radiator |
| 6 | Transmission fluid cooler coolant control valve |
| 7 | Transmission fluid cooler coolant control valve outlet hose assembly |
| 8 | Degas bottle-to-thermostat housing hose assembly |
| 9 | Lower radiator hose |
| 10 | Engine block |
| 11 | Thermostat housing |
| 12 | Coolant bypass hose connector |
| 13 | Cylinder head gasket |
| 14 | Coolant pump |
| 15 | Cylinder head |
| 16 | Degas bottle-to-radiator hose assembly |
| 17 | Heater core inlet hose assembly |
| 18 | Heater core |
| 19 | Heater core outlet hose |
| 20 | EGR valve |
| 21 | Coolant outlet connector adapter assembly |
| 22 | Coolant bypass hose |
| 23 | Transmission fluid cooler - warmer |
| 24 | Transmission fluid heater coolant control valve |
