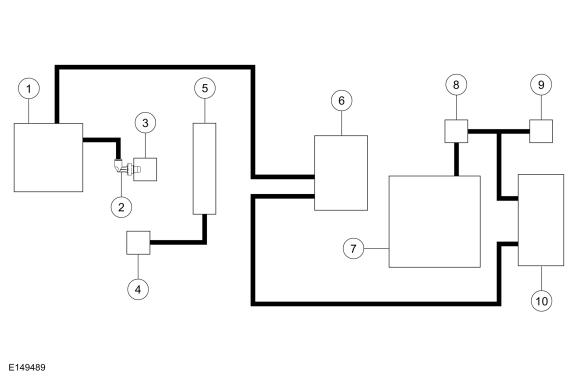

System Diagram
WARNING: This page is about a different variant/trim than selected.
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 9424 | Intake manifold |
| 2 | - | PCV valve (part of 6A785) |
| 3 | 6A785 | Crankcase vent oil separator |
| 4 | 9E652 | Air Cleaner (ACL) outlet pipe |
| 5 | 6582 | Valve cover |
| 6 | 9D289 | EVAP canister purge valve |
| 7 | 9002 | Fuel tank |
| 8 | - | Fuel Tank Pressure (FTP) sensor and tube (part of 9C047) |
| 9 | 9034 | Fuel tank filler pipe |
| 10 | 9D653 | EVAP canister |
