Fuel Level Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
-

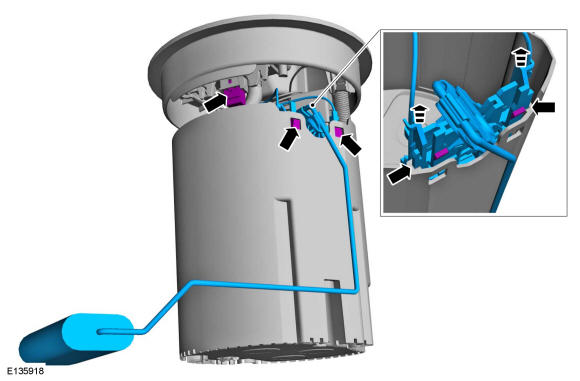

- Disconnect the electrical connector.
- Release the retainer tab.
- Remove the fuel level sender.
