Fuel Tank and Lines - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Fuel tank |
| 2 | Evaporative emission canister |
| 3 | Fuel tank support strap |
| 4 | Fuel tank rollover safety valve |
| 5 | Fuel pump and fuel gage sensor unit |
| 6 | Fuel tank ventilation |
| 7 | Capless fuel tank filler pipe |
| 8 | Fuel tank ventilation |

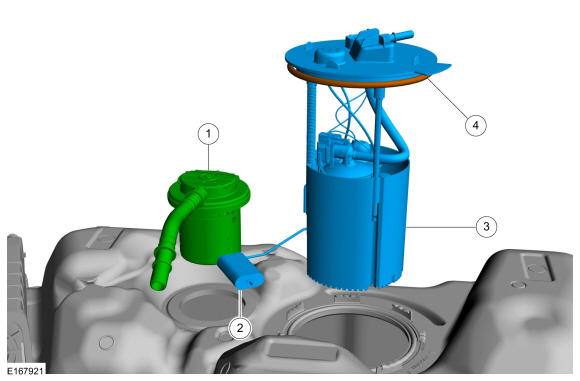

| Item | Description |
|---|---|
| 1 | Fuel tank rollover safety valve |
| 2 | Fuel tank float |
| 3 | Fuel pump and fuel gage sensor unit |
| 4 | Fuel pump and sender unit gasket |
| Item | Description |
|---|---|
| 1 | Fuel supply line |
| 2 | Fuel evaporation line |
