Crankcase Vent Oil Separator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the intake manifold. Refer to: INTAKE MANIFOLD .

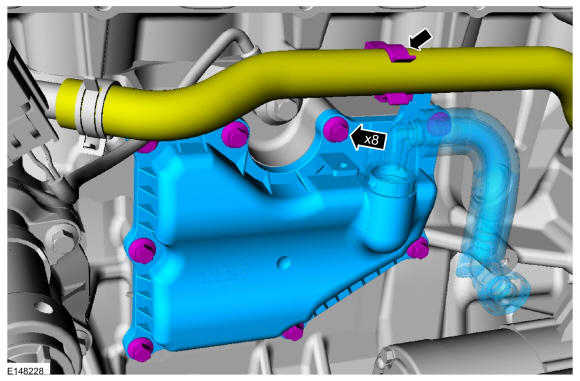

- Detach the coolant hose from the hose retainer and position aside the coolant hose.
- Remove the bolts and the crankcase vent oil separator.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

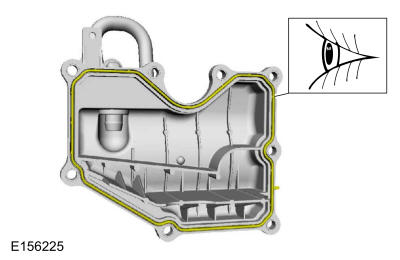

Inspect the crankcase vent oil separator gasket. Replace as needed.

GFD571246

Courtesy of FORD MOTOR COMPANY
