Section 15 (Engine Emission Control - 2.5L DURATEC (125KW/170PS))
>>
Description And Operation
>>

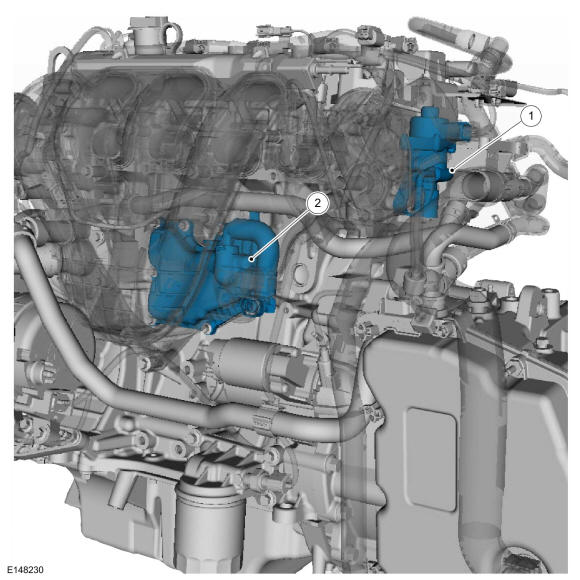

Engine Emission Control - Component Location
>>
2.5L Duratec
2.5L Duratec
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
EGR valve
2
Crankcase vent oil separator
Courtesy of FORD MOTOR COMPANY
