Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner .
-
NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.
Disconnect the Throttle Body (TB) electrical connector and detach the Throttle Body (TB) wiring harness retainer from the Throttle Body (TB).

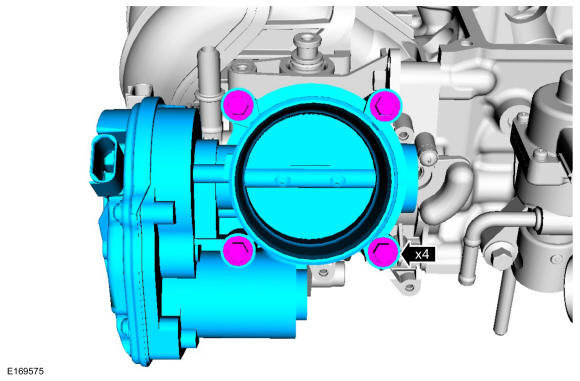

- Remove the Throttle Body (TB) bolts and then remove the Throttle Body (TB).
