Throttle Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of foreign material.

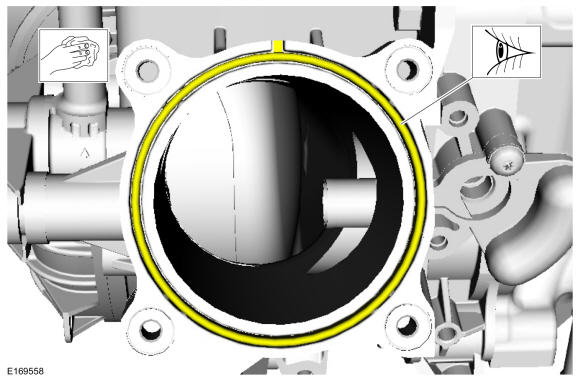

Inspect the Throttle Body (TB) gasket and replace the Throttle Body (TB) gasket as needed.

Courtesy of FORD MOTOR COMPANY
install the Throttle Body (TB) and then install the Throttle Body (TB) bolts. Tighten in the sequence shown in illustration.
Torque: 89 lb.in (10 Nm)

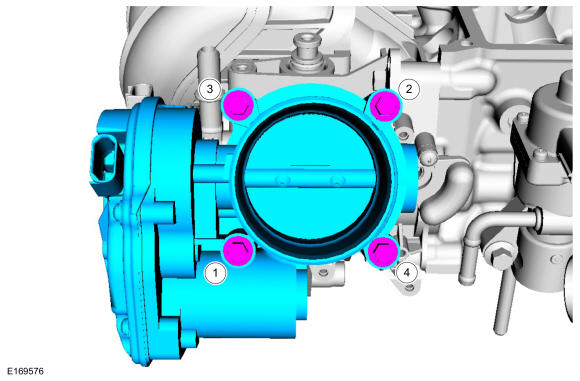

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

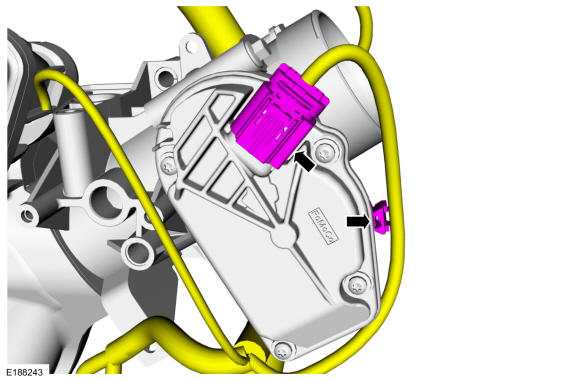

Connect the Throttle Body (TB) electrical connector and attach the Throttle Body (TB) wiring harness retainer to the Throttle Body (TB).

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner .
