Fuel Rail: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that new components are installed.

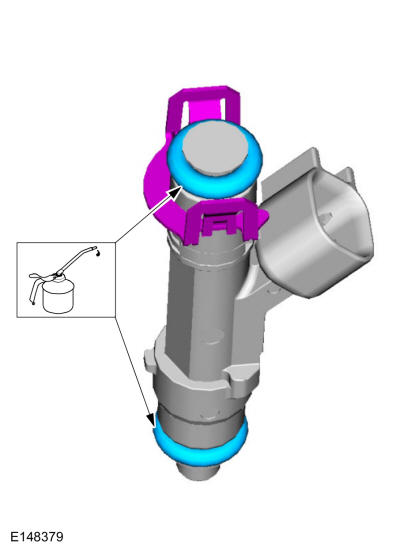

Install the new fuel injector O-ring seals and the fuel injector clips. Lubricate the new O-rings with clean engine oil.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
- To install, reverse the removal procedure.
