Transmission Fluid Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
-
NOTE: Use suitable paper to absorb any escaping fluid.
Release the clamps and detach the coolant hoses.
Use the General Equipment: Hose Clamp(s)
-
NOTE: Use suitable paper to absorb any escaping fluid.

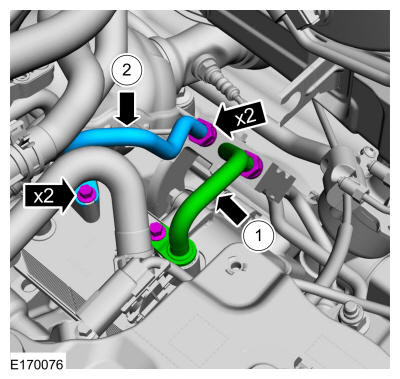

- Remove the bolt, tube nut and the transmission fluid cooler oil outlet tube.
- Remove the bolt, tube nut and the transmission fluid cooler oil inlet tube.
-
NOTE: Make sure that no component falls off during removal.

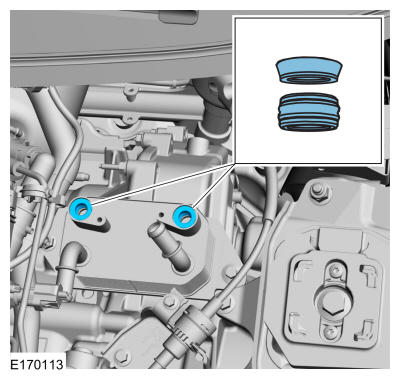

Remove the band seals and backing rings from the transmission fluid cooler.
- Remove the nut and position aside the coolant hose and the bracket.
-
NOTE: Be prepared to collect escaping fluids.
Remove the bolt and the transmission fluid cooler.
