Transmission Fluid Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

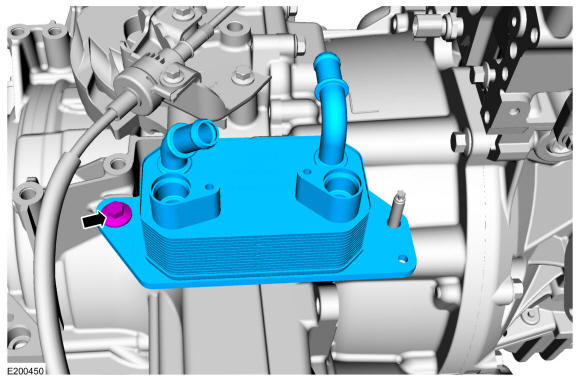

Install the transmission fluid cooler and the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

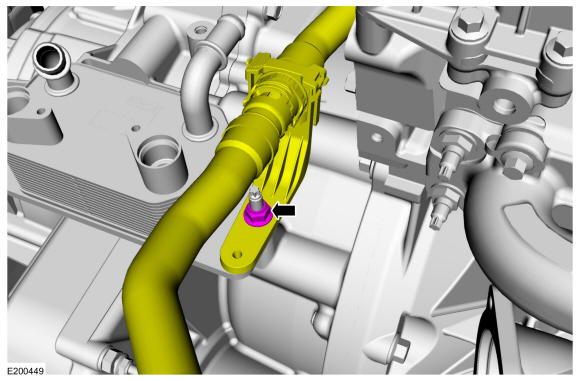

Position back the coolant hose and the bracket and install the nut.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

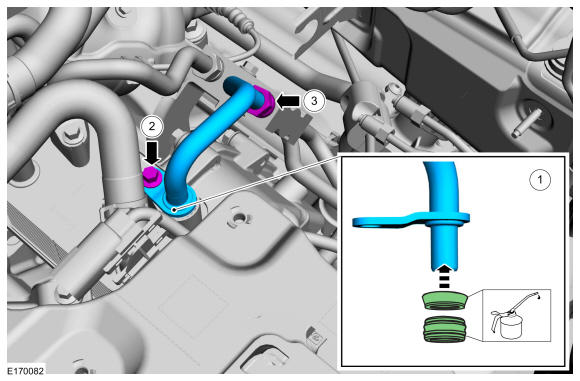

1. Lubricate the band seals and backing rings.
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Install the transmission fluid cooler oil outlet tube and the bolt.
  Torque: 80 lb.in (9 Nm)
3. Tighten the tube nut.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

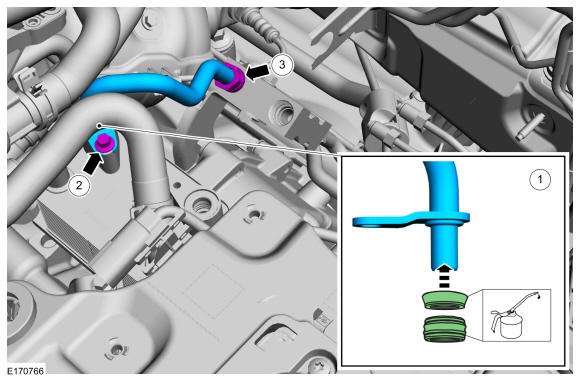

1. Lubricate the band seals and backing rings.
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Install the transmission fluid cooler oil inlet tube and the bolt.
  Torque: 80 lb.in (9 Nm)
3. Tighten the tube nut.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

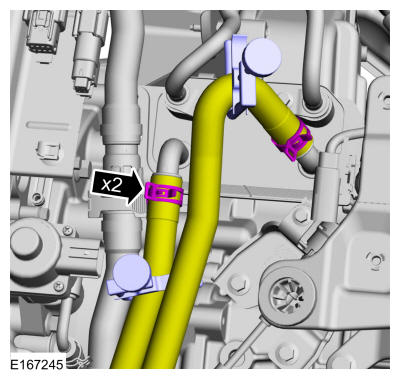

Attach the coolant hoses and position the clamps.
Remove the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
Fill and bleed the cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
Check the transmission fluid level. Refer to: TRANSMISSION FLUID LEVEL CHECK .
