Mass Air Flow (MAF) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
-

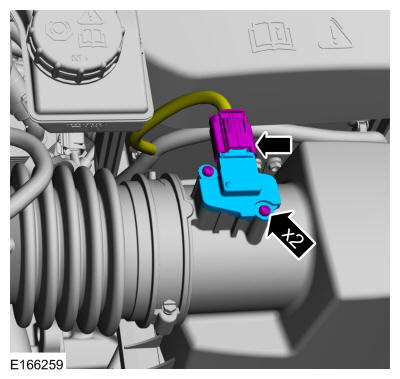

- Disconnect the MAF sensor electrical connector.
- Remove the retainers and the MAF sensor.
Torque: 27 lb.in (3 Nm)
