Manifold Absolute Pressure (MAP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .

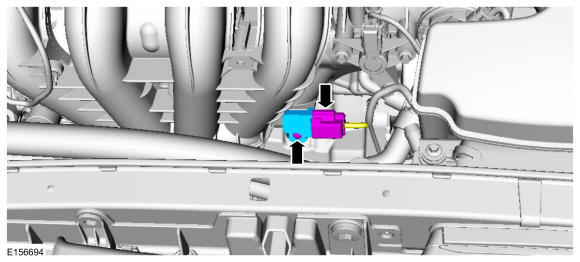

- Disconnect the electrical connector, remove the retainer and the MAP sensor.
Torque: 27 lb.in (3 Nm)
