Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
- Remove intake manifold. Refer to: Intake Manifold .
-
NOTE: Make sure that the component is installed to the position noted before removal.

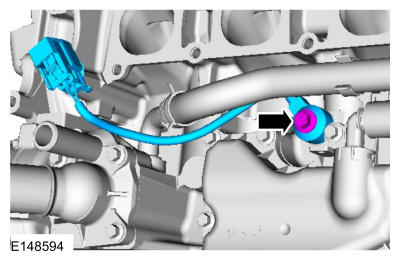

Remove the bolt and the KS.
Torque: 177 lb.in (20 Nm)
