Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview .
- Remove the cowl panel. Refer to: COWL PANEL
- Disconnect the HO2S electrical connector.

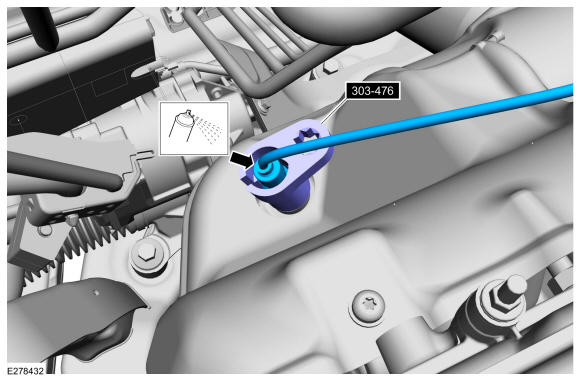

- Using the special tool, remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1
