Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Health and Safety Precautions .

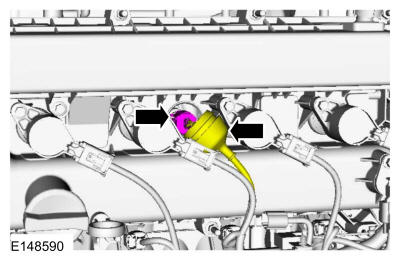

  2. Disconnect the CHT sensor electrical connector.
    GFD571345Courtesy of FORD MOTOR COMPANY

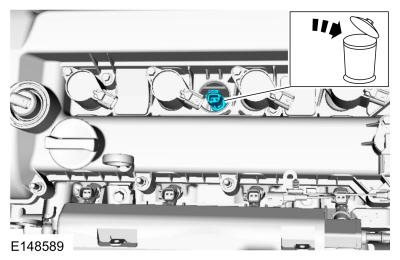

  3. Remove and discard the CHT sensor.
GFD571346Courtesy of FORD MOTOR COMPANY
