Cylinder Head Temperature (CHT) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE:
Make sure that a new component is installed.

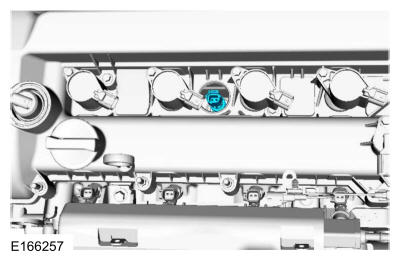

Install a new CHT sensor.
Torque: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- Connect the CHT sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
