Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: Health and Safety Precautions .
- Remove the fender splash shield. Refer to: Fender Splash Shield .
- If equipped. Remove the retainers and the engine undershield reinforcement.
- If equipped. Remove the retainers and the engine undershield.

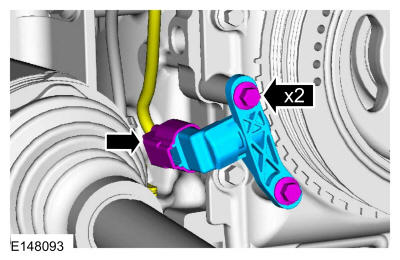

- Disconnect the CKP sensor electrical connector, remove the bolts and the CKP sensor.
