Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

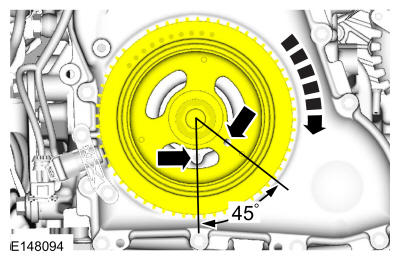

Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY

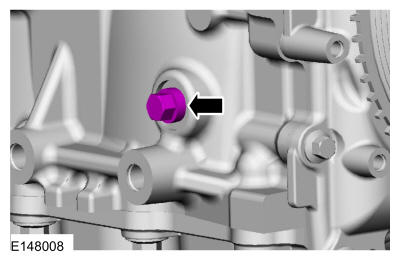

Remove the engine plug bolt.

Courtesy of FORD MOTOR COMPANY

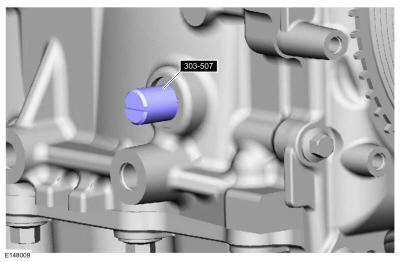

Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

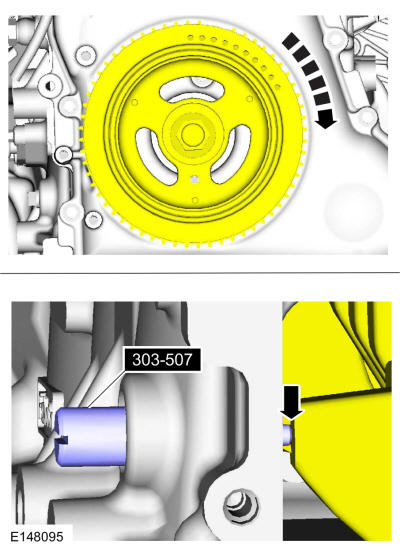

1. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
2. Rotate the crankshaft slowly until the crankshaft stops.
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

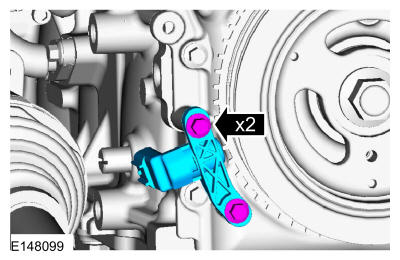

Install the CKP sensor and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

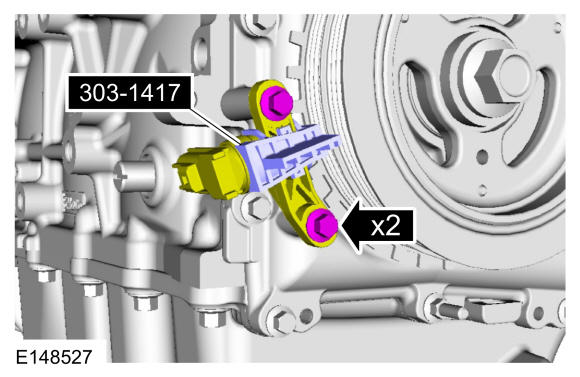

- Install the special service tool. If the special service tool mark does not align with the TDC marked tooth on the crankshaft pulley, loosen the CKP sensor bolts and adjust the sensor until the tool is installed. Use Special Service Tool: 303-1417 Tool, Crank Sensor Alignment.
- Tighten the CKP sensor bolts.
  Torque: 53 lb.in (6 Nm)
- Remove the special service tool.
Courtesy of FORD MOTOR COMPANY

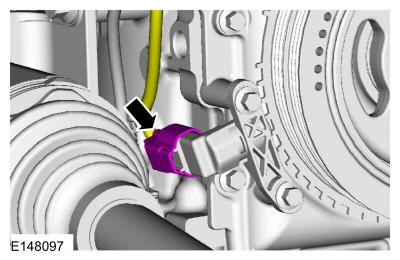

Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

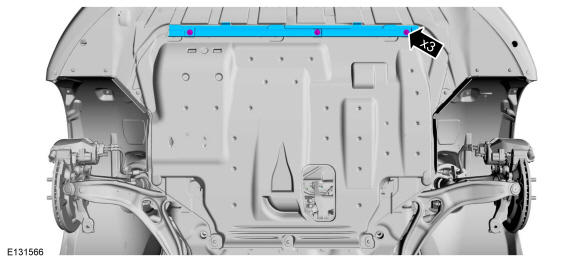

If equipped. Install the engine undershield reinforcement and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped. Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the fender splash shield. Refer to: Fender Splash Shield .
After completing the repair, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions. Use the General Equipment: Ford Diagnostic Equipment
