Clutch Pedal Position (CPP) Switch - Vehicles With: Auto-Start-Stop: Removal
WARNING: This page is about a different variant/trim than selected.

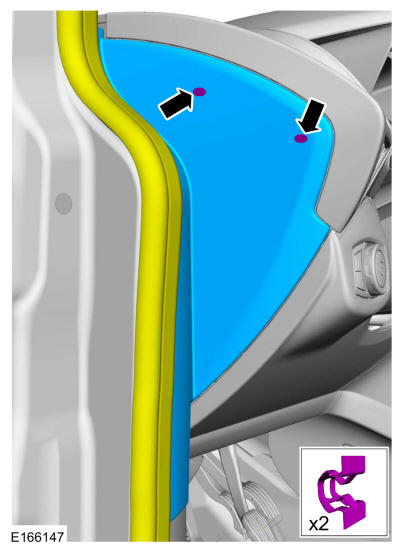

- Position aside the weather-strip, release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover

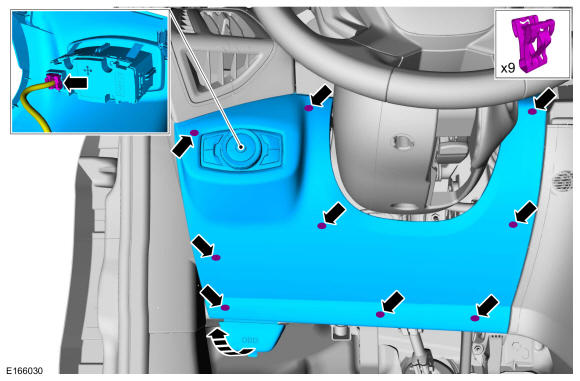

- Release the clips and remove the steering column opening trim panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
-
NOTE: Make sure that the clutch pedal remains in the rest position.

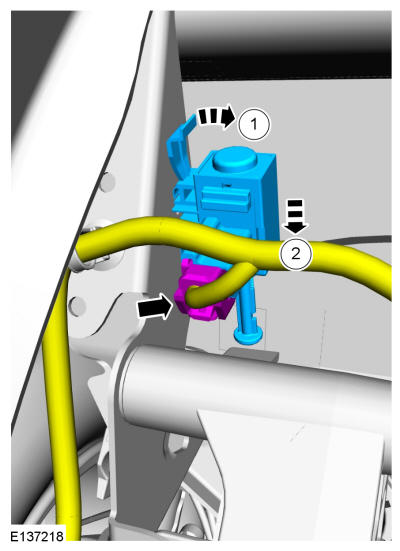

Disconnect the electrical connector and remove the CPP switch.
