Clutch Pedal Position (CPP) Sensor - Vehicles With: Auto-Start-Stop: Removal

WARNING: This page is about a different variant/trim than selected.

LHD

Remove the battery tray.

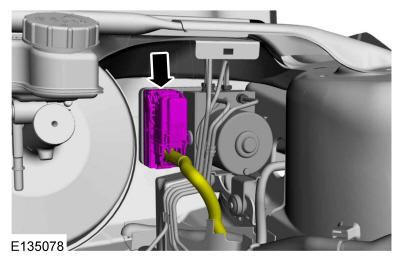

Disconnect the electrical connector and position aside the harness.

Courtesy of FORD MOTOR COMPANY

RHD
Remove the cowl panel grille. Refer to: Cowl Panel Grille .

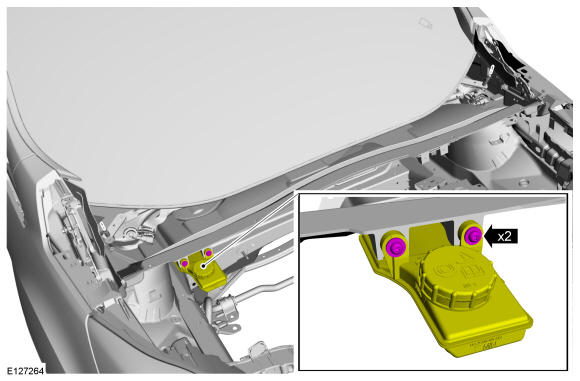

Remove the retainers and position aside the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

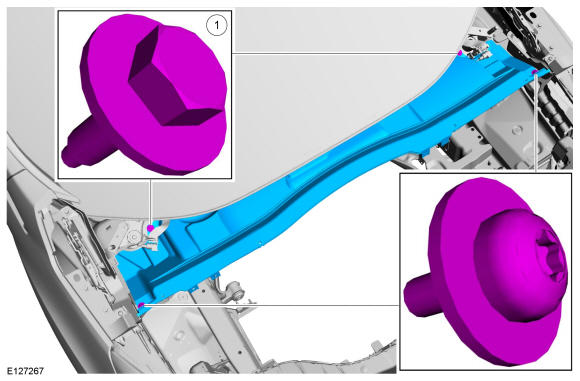

Remove the retainers and cowl panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

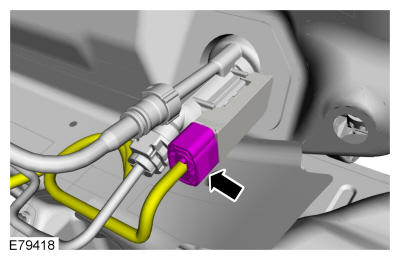

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

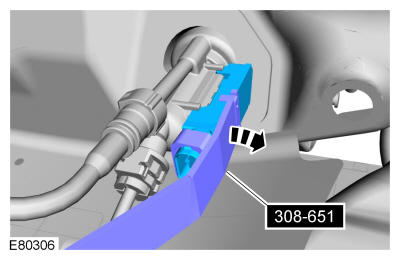

Using the special tool, remove CPP sensor. Use Special Service Tool: 308-651 Installer, Clutch Master Cylinder Sensor.

Courtesy of FORD MOTOR COMPANY
