Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .

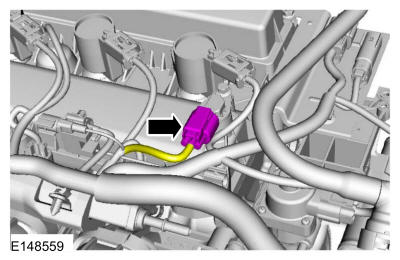

- Disconnect the exhaust CMP sensor electrical connector.

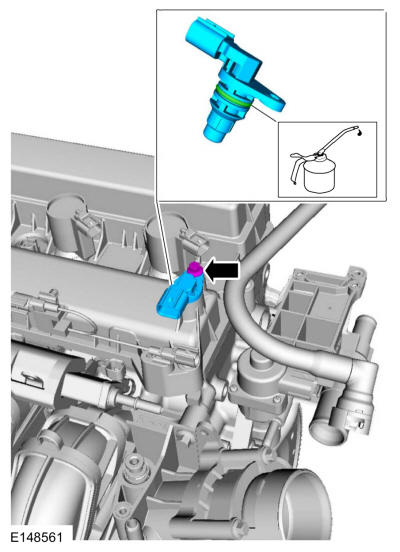

- Remove the bolt and the CMP sensor.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque: 53 lb.in (6 Nm)
