Section 1 (Electronic Engine Controls - 2.5L DURATEC (125KW/170PS))
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>

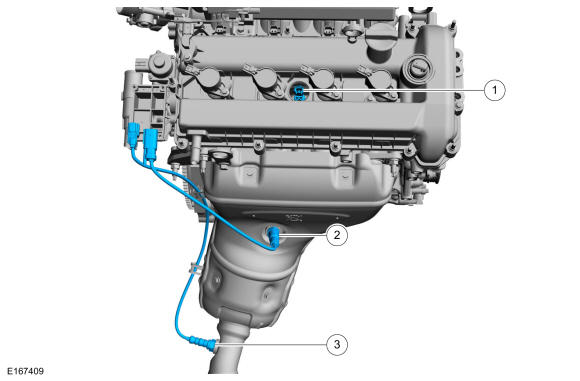

Rear view of engine
Rear view of engine
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
CHT sensor
2
HO2S
3
Catalyst monitor sensor
Courtesy of FORD MOTOR COMPANY
