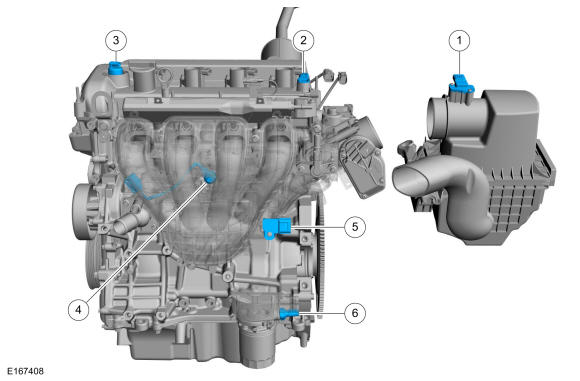

Front view of engine

WARNING: This page is about a different variant/trim than selected.
GFD571314Courtesy of FORD MOTOR COMPANY
Item Description
1 MAF sensor
2 CMP sensor
3 VVT oil control solenoid
4 KS
5 MAP sensor
6 Oil pressure switch
