Steering Column Telescopic Motor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

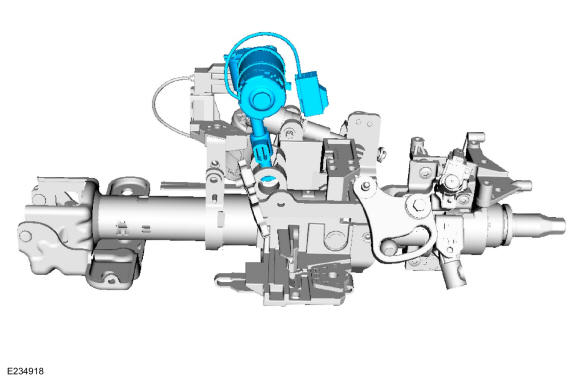

- Remove the steering column. Refer to: Steering Column .

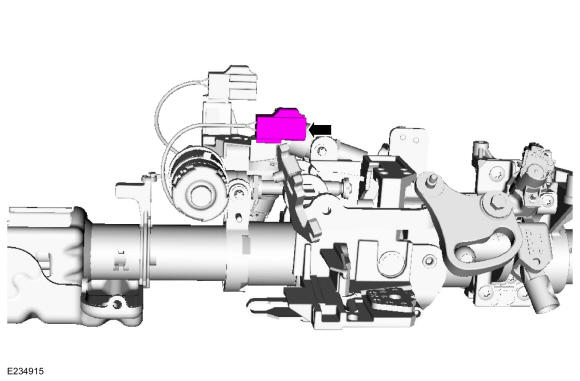

- Detach the telescopic motor electrical connector retainer from the steering column.

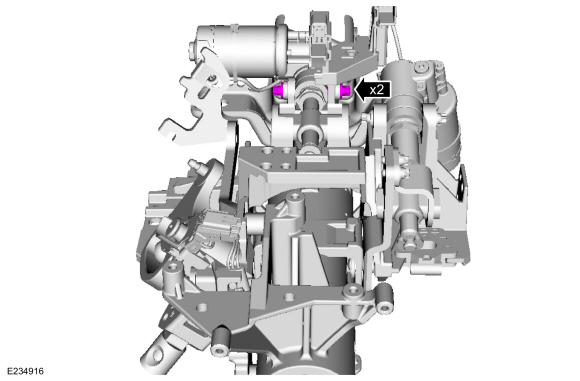

- Remove the telescopic motor screws.
Torque: 62 lb.in (7 Nm)
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

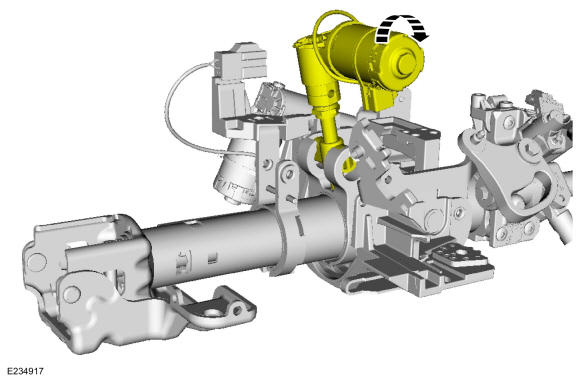

Rotate the telescopic motor.
-
NOTE: Follow the unique instructions or graphics for this step in the installation.
Remove the telescopic motor.
